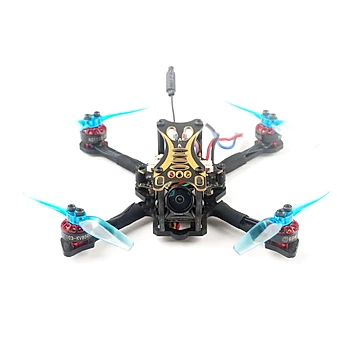

Eachine Novice-II entry level FPV drone

Similar to the Novice-I, the Eachine Novice-II is also ready to fly out of the box. While the first generation Novice-Whoop comes with VR005 goggles, the second generation is equiped with VR009 headset. Both versions are packed with same type of WT8 remote controller.

The Eachine Novice-II drone measures 100 x 100 x 40mm and has a wheelbase (motor to opposite motor distance) of 120mm. The take-off weight of the aircraft (without battery is just 50 grams). In order to allow easy maintenance, the KV8500 motors are equipped with connectors.

Where to Buy Eachine Novice-II

Banggood: https://www.banggood.com

Eachine Novice-II highlights

• Ready to fly out of the box (included RC & FPV goggles);

• 120mm wheelbase;

• Nano X F4 pro flight controller (built-in buzzer & LED strip ready);

• On-board 4in1 5A ESC (S_H_50_REV16_7 firmware);

• 1103 type KV8500 brushless motors;

• Caddx EOS2 v2 FPV camera;

• 5.8G/40CH video transmitter (25/200mW VTX power);

• 2s LIPO compatible.

Price & package options

Just like it predecessor, the Novice-II is also available in two package options. While the standard version with two batteries, WT8 remote controller and VR009 FPV goggles is advertised for $155, the ‘fly more combo’ pack with 10 batteries is sold for $175. Both versions come with same type of 6-way LIPO/LIHV battery charger and handbag.

Eachine Novice-II parts details

Nano X F4 Pro flight controller specs

MCU:STM32F411CEU6 (100MHZ, 512K FLASH);

Sensor: MPU-6000(SPI connection);

Power supply: 1-2S battery input (DC 3.5-8.7V);

Integrated 5A(each) Blheli_S 4in1 ESC Dshot600 ready;

Built-in Frsky D8 SPI receiver;

BetaFlight OSD (SPI Control);

Built-in Current meter Max 28A;

Current meter scale set to 1175;

Built-in 5V 1A BEC and Voltage detection;

Board size: 28.5 x 28.5 mm.

ESC board specifications

MCU upgraded to EFM8BB21;

Power supply: 2-4S LiPo/LiPo HV (7v/17v);

Current: 5A continuous peak 6A (5 seconds);

Support BLHeliSuite programmable;

Factory firmware: S_H_50_REV16_7.HEX;

Default protocol: DSHOT600.

EX1103 Motor specs

KV options: KV8500;

Configu-ration: 9N12P;

Stator Diamter: 11mm;

Stator Length: 3mm;

Shaft Diameter: Φ1.5mm;

Motor Dimension: Φ13.5mm*16mm (Dia.*Len);

Weight: 3.8 grams.

WT8 remote controller specs

Frequency:2.4Ghz;

Frequency Hopping: Latest FHSS(64 points,3.6ms);

Channels: 6 channels;

Resolution: 4096;

Transmission: ≤100mw (20dbm);

Distance: >1000m (depends on actual situation);

Working Voltage:4.2-6v(AAA1.5v*4);

Working current: 100-150mA;

Size:162*110*62mm.

Flight Performance

On 1S, you can definitely tell it’s lacking power. For flying indoor like in a stadium, this would be fine, but it’s not going to cut it when flying outdoor. And by the way, it’s not really intended to be flown in your living room due to the lack of propeller protection.

On 2S, the take-off weight is 77 grams, a little heavy to be honest, but it’s certainly a lot more enjoyable than 1S. The performance is comparable to the popular but more expensive Emax TinyHawk Freestyle.

Out of the box, It flies very locked in and handles the wind well (partly due to the weight), and it recovers quickly from dives without any weird behavior or wobbles.

Pros

• A truly ready-to-fly kit with all the necessary parts including transmitter and FPV goggles

• The “Fly More” version comes with 10 batteries! More than enough for the average pilots

• Decent hardware such as frame, FC board and FPV setup

• Relatively safe to fly in small parks, you can power it with either 1S or 2S depending on how confident you are with your level of flying

• It has an onboard beeper, as well as bright LED bars that can help finding the crashed drone (many more expensive models lack these features)

• The included FPV goggle (VR009) is pretty nice as a budget option

• Good manuals

Cons

• It’s not the most powerful model – it works fine for casual flights and learning, if you are looking to race, this is not it

• The radio controller is not good (see why above)

• Range is limited (100m, 300ft or so) due to the built-in receiver – but that’s enough for most people I think

• The FPV goggles works, but resolution is pretty low

• You need to find a way to power the LiPo charger…
